KATALOGDA DOĞRULANMIŞ MODEL
VMM-250
Yüksek Hassasiyetli Manuel Vision Ölçüm Makinesi
Bu sayfadaki teknik bilgiler yalnız SCHWYZ 2025–27 Projeksiyon ve Dokunma Ölçüm Cihazları kataloğunda doğrulanabilen verilerden oluşturulmuştur.
Vision Ölçüm SistemleriKATALOG S. 6FİYAT GÖSTERİMİ KAPALI
Kaynak: SCHWYZ Projeksiyon ve Dokunma Ölçüm Cihazları 2025–27, sayfa 6.
Doğrulanmış teknik bilgiler
| X/Y eksen doğruluğu | ≤2.4+L/200 µm |
|---|---|
| Tekrarlanabilirlik | 2 µm |
| Ölçek çözünürlüğü | 0.0005 mm |
| Kamera | 700TVL renkli CCD |
| Yazılım | iMeasuring 2.1 |
Katalogdaki ayrıntılı teknik bilgiler
Aşağıdaki bilgiler SCHWYZ 2025–27 kataloğundaki özellik, teknik tablo, uygulama, teslimat ve aksesuar bölümlerinden aktarılmıştır.
Özellikler
Yüksek stabilite ve doğruluk için granit taban ve kolon.
Geri dönüş hatasını 2 µm içinde tutmak için hassas dişsiz mil ve hızlı kilitleme.
A sınıfı optik lineer ölçek ve hassas çalışma tablası.
6.5X detent zoom lens ve 700TVL renkli CCD kamera.
Programlanabilir 4 halka / 8 bölge LED yüzey ve kontur aydınlatması.
iMeasuring 2.1 ölçüm yazılımı; opsiyonel temas probu ve 3D ölçüm yükseltmesi.
Seri teknik karşılaştırma tablosu
| Model | Metal tabla | Cam tabla | X/Y hareket | Makine ölçüsü | Net ağırlık |
|---|---|---|---|---|---|
| VMM-200 | 408×308 mm | 306×198 mm | 200×100 mm | 790×617×1000 mm | 175 kg |
| VMM-250 | 408×308 mm | 306×198 mm | 250×150 mm | 790×617×1000 mm | 175 kg |
| VMM-300 | 458×358 mm | 356×248 mm | 300×200 mm | Katalog tablosunda boş | 185 kg |
| VMM-400 | 608×470 mm | 456×348 mm | 400×300 mm | 1002×817×1043 mm | 350 kg |
| VMM-500 | 708×470 mm | 556×348 mm | 500×400 mm | 1002×867×1043 mm | 380 kg |
Z ekseniYüksek hassasiyetli lineer kızak; 200 mm çalışma hareketi
X/Y/Z ölçek çözünürlüğü0.0005 mm
X/Y doğruluğu≤2.4+L/200 µm
Tekrarlanabilirlik2 µm
Taban ve kolonYüksek hassasiyetli granit
Yüzey aydınlatmasıKademesiz 4 halka / 8 bölge LED soğuk ışık
Kontur aydınlatmasıLED paralel aydınlatma
OpsiyonLED lazer navigasyon ışığı
Kamera700TVL renkli CCD
Zoom lens6.5X detent; optik 0.7–4.5X; video 26–172X
YazılımiMeasuring 2.1
Çalışma ortamı20°C±2°C; %30–80 RH; titreşim <0.002g, <15Hz
Standart teslimat
2.5D Measuring SoftwarePIM2.1 · teknik aksesuar koduVideo Capture CardP527-130 · teknik aksesuar koduContour LED Parallel IlluminationP425-100 · teknik aksesuar koduDELL PC SystemP581-960 · teknik aksesuar koduSurface 4R/8D LED IlluminationP425-130 · teknik aksesuar koduAV Video CableP581-940 · teknik aksesuar koduDetented Zoom LensP421-100 · teknik aksesuar koduRS232 Data CableP581-930 · teknik aksesuar koduHD700TVL Color CameraP484-130 · teknik aksesuar koduOptical Calibration BlockP581-800 · teknik aksesuar kodu
Opsiyonel aksesuarlar
Electronic Zoom LensP421-140 · teknik aksesuar koduRotary Table RT 2P581-520 · teknik aksesuar kodu12.5X Detented Zoom LensP421-100 · teknik aksesuar koduRotary Table RT 3P581-530 · teknik aksesuar koduCoaxial Detented Zoom LensP421-120 · teknik aksesuar koduWorking Cupboard ST 05P581-650 · teknik aksesuar kodu0.5X Auxiliary ObjectiveP423-050 · teknik aksesuar koduSwivel Center SupportP581-850 · teknik aksesuar kodu2X Auxiliary ObjectiveP423-200 · teknik aksesuar koduFoot SwitchP581-350 · teknik aksesuar koduLaser Positioning SystemP581-330 · teknik aksesuar kodu
İlgili SCHWYZ görselleri
Katalogdaki tam kaynak metni ve tablolar
Tam katalog verisini göster / gizle
--- KATALOG SAYFA 6 ---
HIGH ACCURACY MANUAL VISION MEASURING MACHINE
FEATURES
■ High precision granite plate base and pillar,
High Accuracy
to ensure high stability and accuracy;
■ High precision toothless rod and fast moving 2.4+L/200(um)
locking device, to ensure hysterisis erroris
within 2um;
■ High accuracy A grade optical linear scale High Resolution
with precision working stage, to ensure the 700TVL Color CCD
accuracy is within
3+L/200um;
■ High definitive detented zoom lens and high
Measurement
resolution color digital camera, to ensure
clear image without distortion; Software
■ With programmable surface 4-ring 8-division iMeasuring 2.1
LED Cold Illumination and contour LED
parallel illumination and internal intelligent
light adjustment, it can automatic control the
brightness in the 4-ring 8-division;
■ Powerful function iMeasuring2.1 measuring
software highly enhance the quality control
situation;
■ Optional imported contact probe and 3D
measuring software which can update it to
3D Measuring machine;
TECHNICAL SPECIFICATION
Model No. VMM-200 VMM-250 VMM-300 VMM-400 VMM-500
Metal Table 408x308mm 408x308mm 458x358mm 608x470mm 708x470mm
Glass Table 306x198mm 306x198mm 356x248mm 456x348mm 556x348mm
X/Y-axis Travel 200x100mm 250x150mm 300x200mm 400x300mm 500x400mm
Z-axis Travel High-precision linear guide , working travel 200mm
X/Y/Z-axis Travel 0.0005mm
X/Y-axis Accuracy ≤2.4+L/200(um)
Repeatability 2um
Base and Pillar High Accuracy Granite Plate
Illumination Surface: Stepless Adjustable 4-ring 8-division LED Cold Illumination
System(Software Contour: LED Parallel Illumination
Adjustment) LED Laser Navigation Lights [Optional]
CCD Camera High Resolution 700TVL Color CCD Camera
Zoom lens 6.5X High Resolution Detented Zoom Lens
Magnification：0.7X~4.5X；Video Magnification：26X~172X
Temperature：20℃±2℃, change range < 2℃/hr
Working Environment
Humidity：30% ~80%RH
Vibration<0.002g，<15Hz
Measuring Software iMeasuring 2.1
Operation System Support XP，WIN7，WIN8.1，WIN 10, 32/64 operating system
Language English, Simplified Chinese, Traditional Chinese, other language versions can be added
Dimension(W*D*H) 790x617x1000mm 790x617x1000mm 1002x817x1043mm 1002x867x1043mm
Net Weight 175Kg 175Kg 185Kg 350Kg 380Kg
N5
--- KATALOG SAYFA 7 ---
STANDARD DELIVERY
Product Name Model No. Product Name Model No.
2.5D Measuring Software PIM2.1 Video Capture Card P527-130
Contour LED Parallel Illumination P425-100 DELL PC System P581-960
Surface 4R/8D LED Illumination P425-130 AV Video Cable P581-940
Detented Zoom Lens P421-100 RS232 Data Cable P581-930
HD700TVL Color Camera P484-130 Optical Calibration Block P581-800
Optional Accessories
Product Name Model No. Product Name Model No.
Electronic Zoom Lens P421-140 Rotary Tables RT 2 P581-520
12.5X Detented Zoom Lens P421-100 Rotary Tables RT 3 P581-530
Coaxial Detented Zoom Lens P421-120 Working Cupboard ST 05 P581-650
0.5X Auxiliary Objective P423-050 Swivel Center Support P581-850
2X Auxiliary Objective P423-200 Foot Switch P581-350
Laser Positioning System P581-330

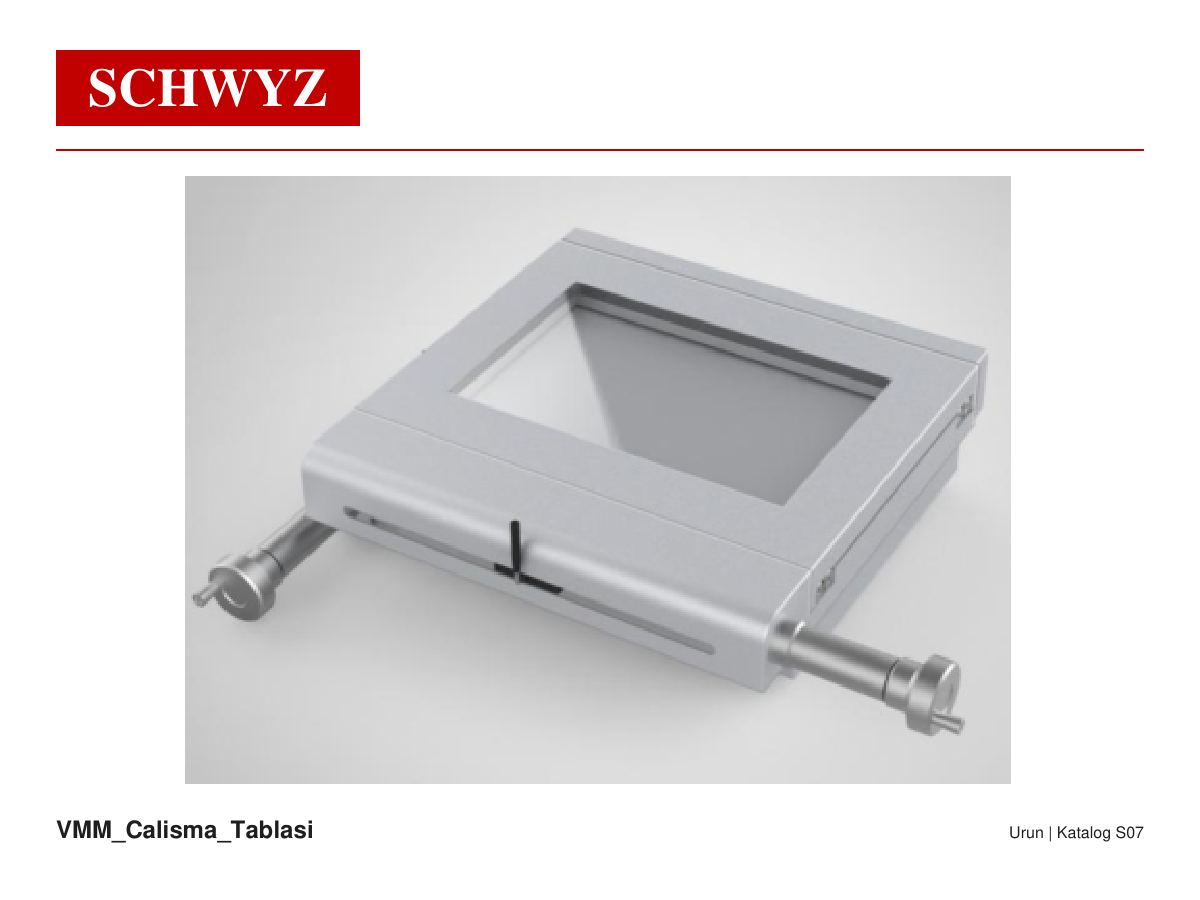

LED Illumination Working Stage
HIGH ACCURACY 3D MANUAL VISION MEASURING MACHINE
FEATURES Less Error
Within 2um
■ High precision Granite Plate base and pillar, to
ensure high stability and accuracy;
High Accuracy
■ High precision toothless rod and fast moving
≤ 2.4
locking device, to ensure hysterisis error is
+L/200(um
within 2um;
■ High accuracy A grade optical linear scale with 3D Measurement
Imported Touch
precision working stage, to ensure the accuracy
Probe
is within 3+L/200um;
■ High definitive detented zoom lens and high High Resolution
resolution color digital camera, to ensure clear 700TVL Color
image without distortion;
Measurement
■ With programmable surface 4-ring 8-division
Software
LED Cold Illumination and contour LED parallel
Measuring 3.1
illumination and built-in intelligent light
adjustment, it can automatic control the
brightness in the 4-ring 8-division;
■ Imported contact probe and powerful function
iMeasuring3.1 3D Measuring Software, highly
enhance the quality control;
