PG7144

Kumaş / Linen Test Büyüteci

Bu sayfadaki teknik bilgiler yalnız SCHWYZ 2025–27 Projeksiyon ve Dokunma Ölçüm Cihazları kataloğunda doğrulanabilen verilerden oluşturulmuştur.

Optik İnceleme & AydınlatmaKATALOG S. 19FİYAT GÖSTERİMİ KAPALI
SCHWYZ PG7144
Kaynak: SCHWYZ Projeksiyon ve Dokunma Ölçüm Cihazları 2025–27, sayfa 19.

Katalogdaki ayrıntılı teknik bilgiler

Aşağıdaki bilgiler SCHWYZ 2025–27 kataloğundaki özellik, teknik tablo, uygulama, teslimat ve aksesuar bölümlerinden aktarılmıştır.

Özellikler

PG7144/PG7141 katlanabilir taşınabilir kumaş kontrol lupaları.
PG7014A ve PG7802 10X diamond loupe; PG7802 UV+LED destekli.
LED-144 dört bağımsız aydınlatma bölgesi, ayarlanabilir ışık şiddeti ve gölgesiz aydınlatma.
LED-144 için 144 beyaz LED, 100.000 saat ömür ve 110–240V otomatik besleme.

Teknik özellikler

Taban14 mm
Büyütme10X

İlgili SCHWYZ görselleri

Katalogdaki tam kaynak metni ve tablolar

Tam katalog verisini göster / gizle
--- KATALOG SAYFA 19 ---

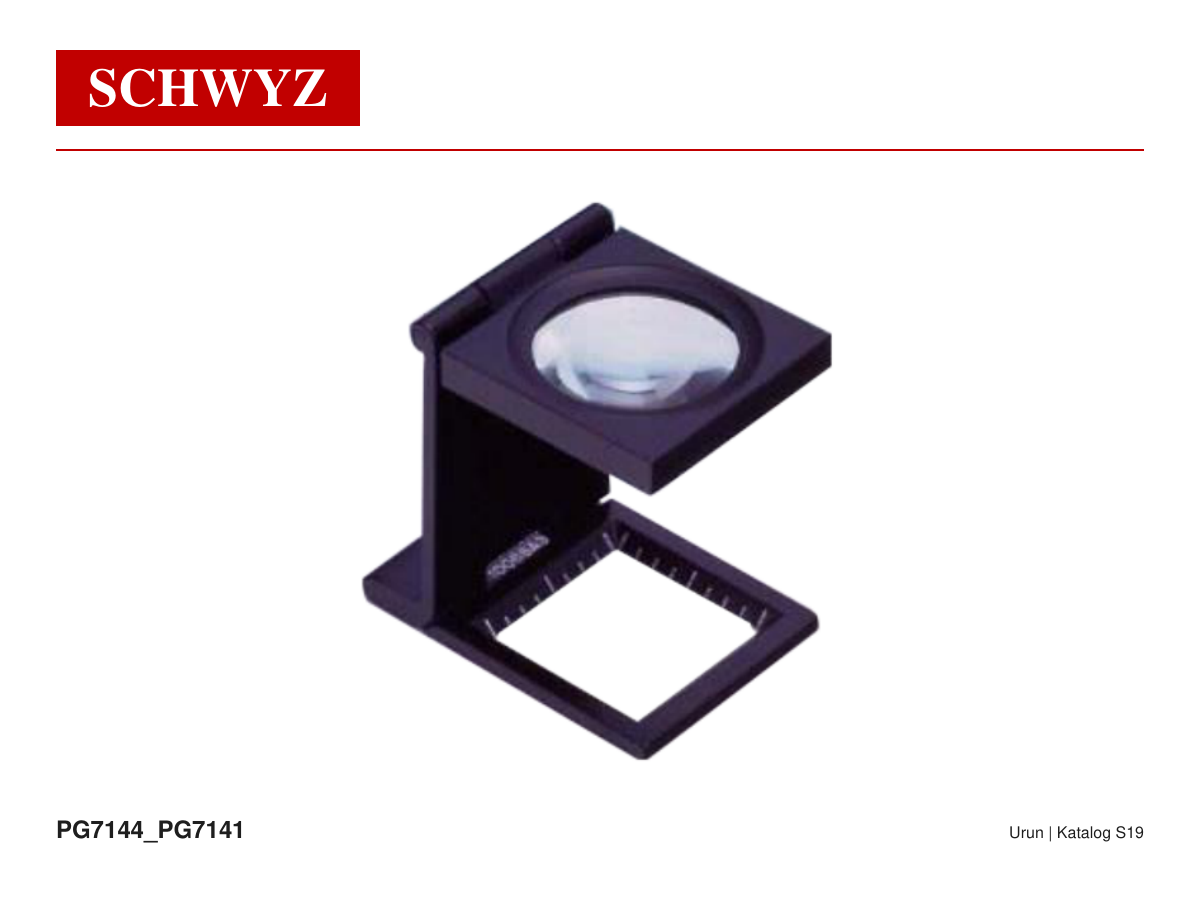

LINEN TESTER PG7144/PG7141
      FEATURES
      ■ Linen Testers are convenient folding type magnifying                 Model No.:
        glasses for inspecting cloths. They are widely used as
        portable magnifiers and are available in various models.             PG7144
      ■ PG7144 PG7141
        Base Size: 14mm
        Magnification: 10x
      ■ PG7141
        Base Size: 30mm
        Magnification: 6x
        Packaged in White box, Wax paper wrapped, No inner
        pouch


         DIAMOND LOUPES
      FEATURES

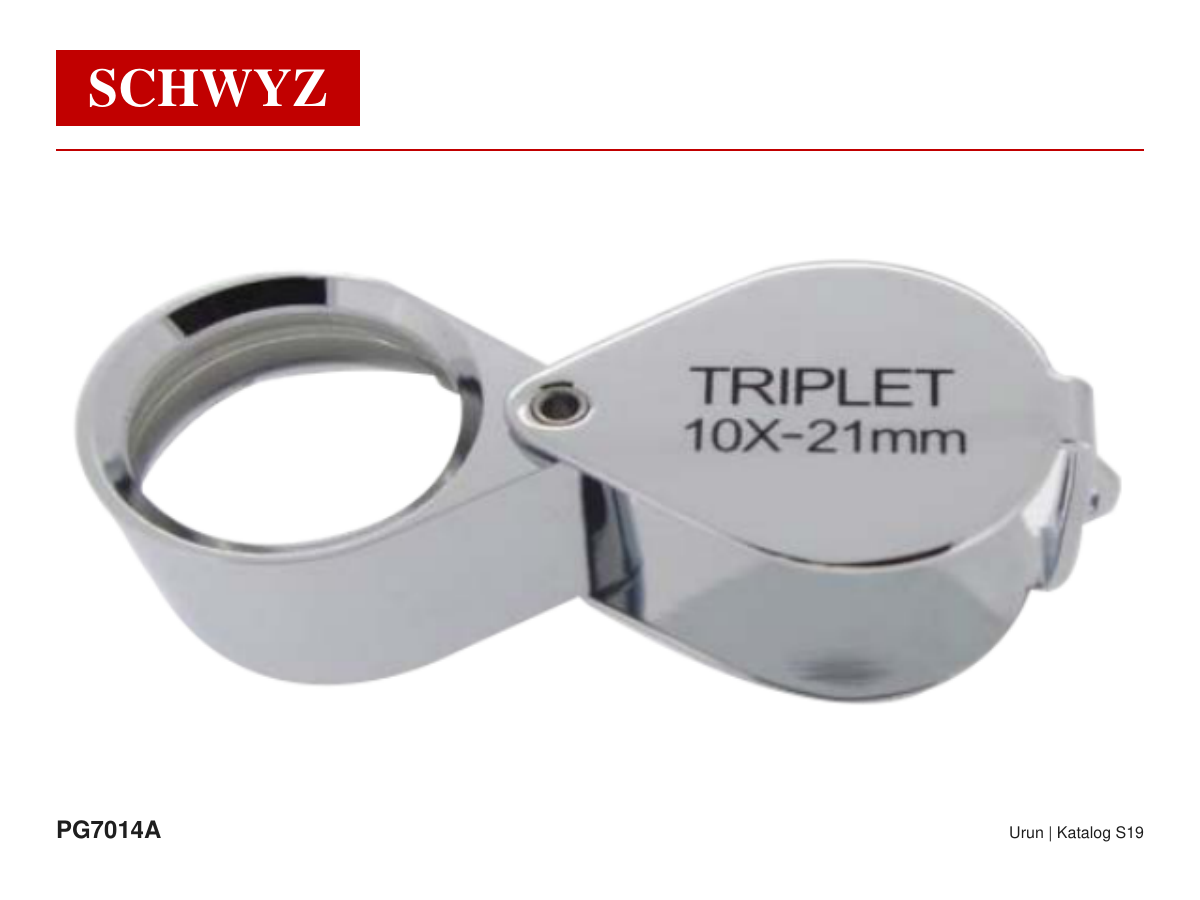

      ■ PG7014A
      ■ Field of view: 21mm
      ■ Magnification: 10x
      ■ Silver, black, gold is acceptable.

      FEATURES                                                               Model No.:PG7014A

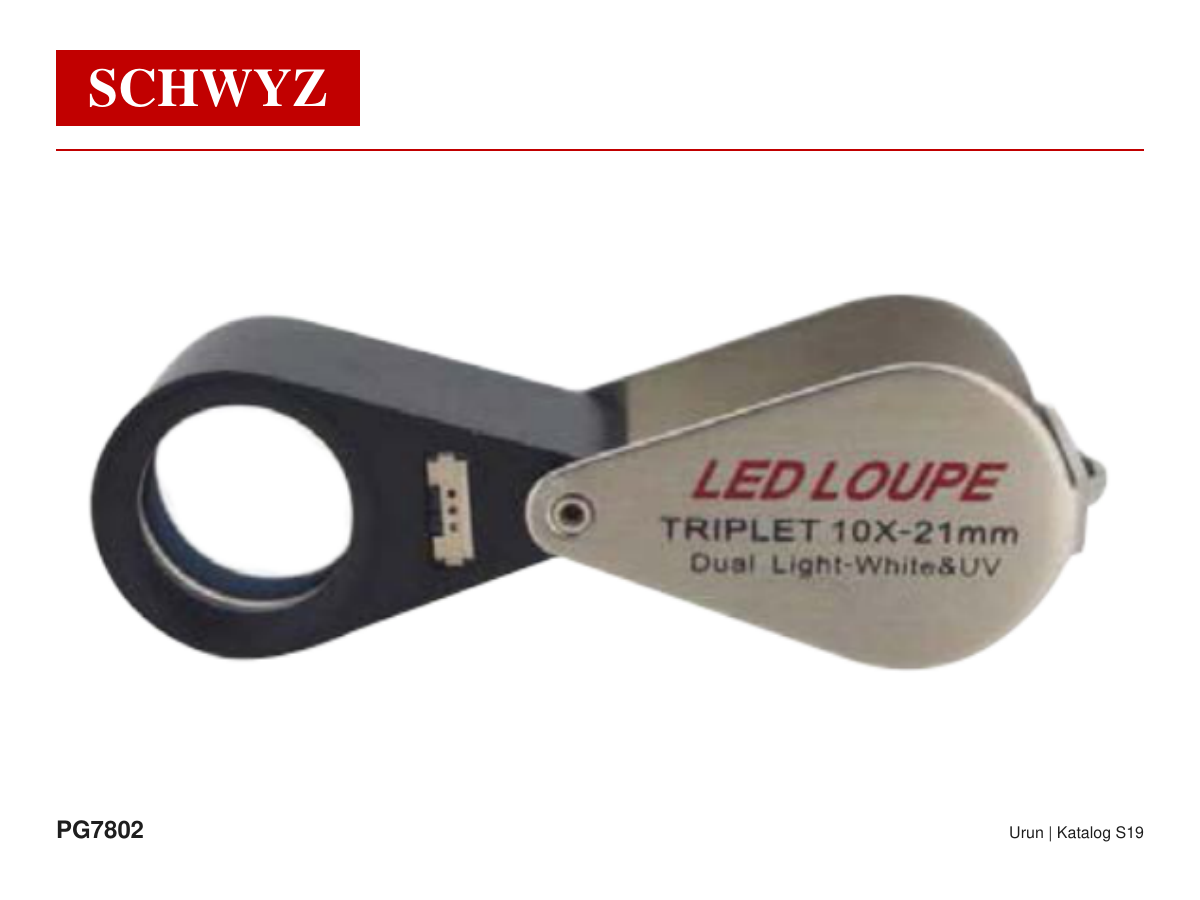

      ■ PG7802
      ■ Field of view: 21mm
      ■ Magnification: 10x
      ■ UV+LED
      ■ Silver, black, gold is acceptable


          144 LED FOUR-ZONE MICROSCOPE RING LIGHT                                         Model No.:PG7802

       FEATURES
       ■ This is a 144-LED intensity direction adjustable ring light with
         mounting size up to 2-1/2" (64mm) in diameter. The light ring
         is consisted of 4 individual portions (4 lighting zones) that can
         be turned on/off separately. You may use the feature to
         change lighting directions and obtain the best illumination for
         your application. The ring light has 2-1/2"
         (64mm) inside and 4" (100mm) outside diameters. It works
         with power supplies from a 110-220V and comes with a
         1-7/8" (48 mm in diameter) ring adapter. With variable
         intensity control, it provides cool, even, intense and focused
         shadow-free illumination. It is an ideal durable cool light
         source for all stereo microscopes, especially for gemological,
         coin and gem/jewelry microscopes. This kit comes with one
         year warranty against manufacturing defects
          Features & Specifications :
       ■ 144 bright white LED bulbs
       ■ Lighting direction changeable
       ■ Variable intensity control
       ■ Intense and focused shadow-free illumination                                     Model No.:LED-144
       ■ 100,000 hours of life
       ■ Power input: 110-240V, 50-60HZ, auto switching
       ■ Fits up to 2-1/2" (64mm) mount rings
       ■ Inside diameter of the ring light: 2-1/2" (64mm)
       ■ Outside diameter of the ring light: 4" (100mm)
          Packing List :
       ■ One 144-LED Ring Light (B)
       ■ One Control Box
       ■ One Power Cable
       ■ One 48mm Ring Adapte



N18
