.'&56#0&/'#574+0)/+%415%12' 25x to 100x
 FEATURES

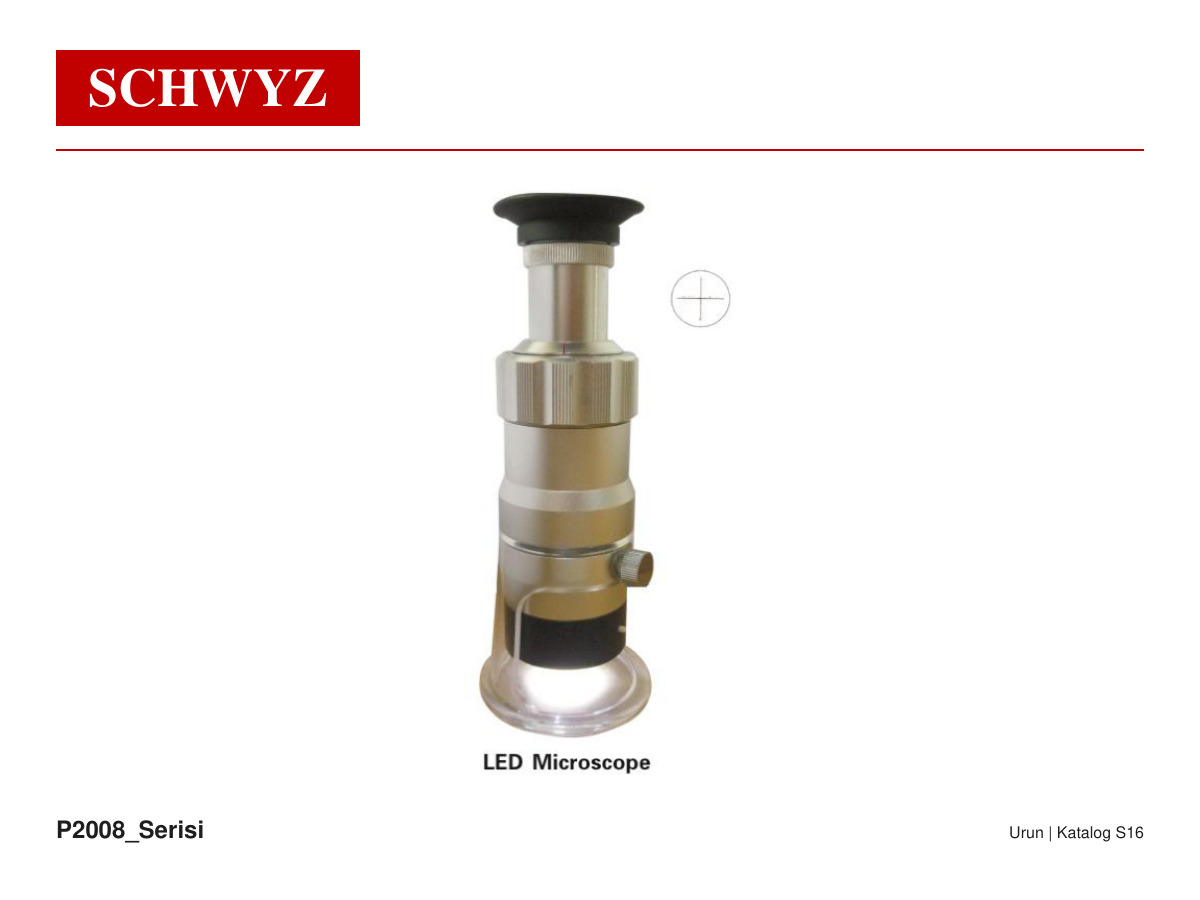

 ■ Stand Microscope is a small size, lightweight and conveniently portable microscope. It is designed to
   cover the range in between the high-grade, heavily equipped microscopes and the various magnifiers
   3x-30x). It can easily, speedily and accurately catch the subject to be examined with its bright and
   superior resolving power and smooth-working mechanism. This microscope is convenient for
   measuring the thickness, height or depth of subjects having different levels and for measuring the
   depth of items like print cylinders, printing plates and other similar applications.
   The precision made focusing ring, simplifies operation, and the attachable/detachable rubber eyepiece
   increases the ease in operation.
   A scale is built into the scale chamber above the focusing ring
   The lens barrel of the eyepiece is the visibility adjustment ring.
   First turn this ring and set it at the position where the scale can be seen clearly.
   Then turn the focusing ring refocus on the next level.
   By reading the scale engraved on the focusing ring and the main needle of the lens barrel, depths can
   be measured with the accuracy of 0.1mm (.004").
   This scale can be easily interchanged according to use. Three kinds of scales-standard, for tooling, for
   printing are available.
   Stand Microscope is ideal for use in factories, inspection rooms and research laboratories.

     Model No.                      P2008-20 P2008-40 P2008-60 P2008-100
     Magnification                     20X                         40X                         60X                         100X
      Field of View               3.30 mmø                    2.00mmø                     1.09mmø                     0.84mmø
                               No. 24 = 0.05mm             No. 13 = 0.02mm             No. 34 = 0.01mm            No. 44 = 0.005mm
     Min. Scale Div.            No. 26 = 0.002"             No. 15 = 0.001"            No. 36 = 0.0005"            No. 46 = 0.0005"
   Measuring Range                   3.0mm                       1.6mm                        1.0mm                     0.8mm
   Working Distance                  17.0mm                      11.7mm                      11.7mm                     11.6mm
  Numerical Aperture                   0.11                        0.18                        0.22                        0.22
     Focal Distance                  19.8mm                      14.9mm                       9.9mm                     9.9mm
        Size (mm)                  41.5øx122                   41.5øx122                   41.5øx122                   41.5øx122
       Net Weight                      83 g                        83 g                        83 g                        88 g

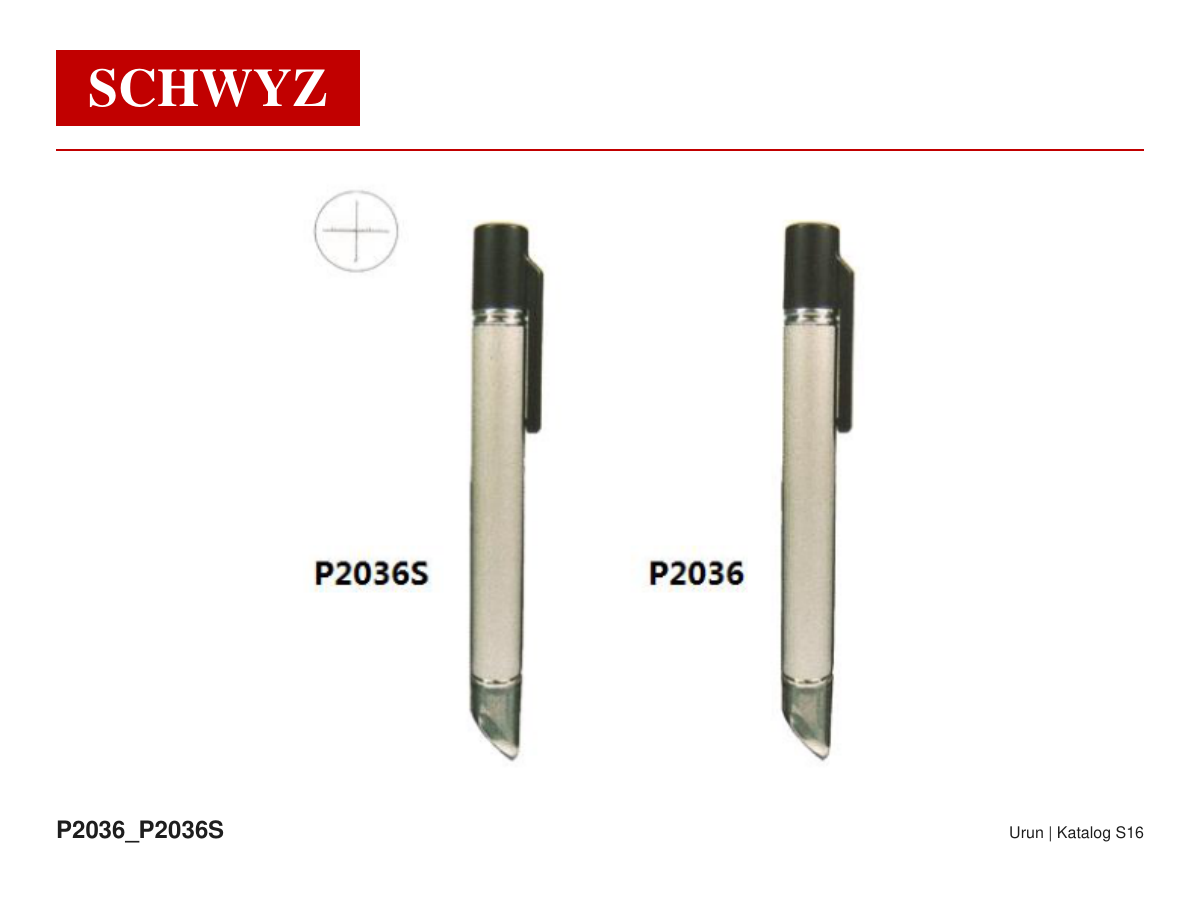

    POCKET MEASURING MICROSCOPE
 FEATURES
 ■ Pocket measuring microscope with reticle. The Reticle is cross hair with
   horizontal scale. To focus the microscope, hold it so that the notch at the
   tip of the acrylic cylinder of the microscope faces towards you, place the
   center of the object lens above the specimen and while tilting the cylinder
   forward and backward with your eye on the eye-piece lens, fix the cylinder
   and adjust to the best angle which can give the sharpest image.


Model 2036 without scales
         Model No.                            P2036-20 P2036-50 P2036-100
         Magnification                           25X                                50X                                100X
         Field of View                            8°                                 6°                                5.7°
      Measuring Length                          3 mm                               2 mm                                1 mm
           Size (mm)                          12.4 x 127                         12.4 x 127                       12.4 x 127
       Net Weight                                12 g                               13 g                               16 g
Model 2036S with scales
               Model No.                                       P2036S-20 P2036S-50
              Magnification                                        25X                                           50X
               Field of View                                     8°                                              6°
           Measuring Length                             3 mm 0.05mm(0-3mm)                            2 mm 0.02mm(0-1.6mm)
                                                            0.002"(0-0.12")                               0.001"(0-0.0.6")
                 Size (mm)                                     12.4 x 127                                     12.4 x 127
                Net Weight                                        12 g                                          13 g
