EVM-300

--- KATALOG SAYFA 9 ---
VISION MEASURING MACHINE
     FEATURES
                                                                                Less Error
     ■ Adopt granite stone base and column to ensure the stability
       and precision of the machine;                                             Within 2um
     ■ Adopt toothless polished rod and fast-moving locking device
       to ensure that the return error of the table is within 2um;
                                                                               High Accuracy
     ■ Adopt high-precision instrument optical ruler and precision
       worktable to ensure the accuracy of the machine is within                ≤3.0+L/200um
       ≤3.0+L/200um;
     ■ Adopt zoom lens and high-resolution color digital camera to
       ensure clear picture quality without distortion;                        High Resolution
     ■ Using the program-controlled surface 4-ring 8-area LED cold
       illumination and Contour LED Parallel Illumination as well as a          1.3M 1/3 " digital
       built-in intelligent light adjustment module, the area                       camera
       brightness of the light in the 4-ring 8-area can be freely
       controlled;                                                              Measuremen
     ■ iMeasuring Vision measurement software improves quality                   t Software
       control to a new level;
                                                                                 iMeasuring
     ■ Optional contact probe and three-dimensional measurement
       software can be used to upgrade the machine to a contact
       three-dimensional measuring machine.
     ■ It can be upgraded to install an autofocus function module to
       achieve accurate semi-automatic measurement.



     TECHNICAL SPECIFICATION
     Model No.                EVM-200 EVM-250 EVM-300 EVM-400 EVM-500
     Marble Table             408x308mm             408x308mm             458x358mm             608x470mm        708x470mm
     Glass Table              306x198mm             306x198mm             356x248mm             456x348mm        556x348mm
     X/Y-axis Travel          200x150mm             250x150mm             300x200mm             400x300mm        500x400mm
     Z-axis Travel            High-precision linear guide, working travel 200mm
     X/Y/Z-axis resolution 0.0005mm
     Measurement
                               XY axis: ≤3.0+L/200；Zais：≤5+L/200
     Accuracy* (um)
     Hysterisis Error
                              2um
     Repeatability
     Base and Pillar          High Accuracy Granite Plate

     Illumination              Surface 4 rings and 8 zones infinitely adjustable LED cold Illumination

     System(Software          Contour: LED Parallel Illumination
     Adjustment)               Optional Coaxial Light

     Digital Camera           1/3"/1.3Mpixel High Resolution Digital Camera

                               6.5X High-Resolution Zoom lens;
     Zoom lens
                              Optical Magnification: 0.7X~4.5X times; Video Magnification: 26X~172X(21.5” Monitor)

     Working                  Temperature：20℃±2℃, change range < 2℃/hr
     Environment              Humidity：30% ~80%RH
                              Vibration<0.002g，<15Hz
     Measuring Software       IMeasuring
     Operation System         Support XP，WIN7，WIN8.1，WIN 10,32/64 operating system
     Language                 English, other language versions can be added
     Dimension(W*D*H)          790x617x1000mm      790x617x1000mm       740x630x1075mm     1002x817x1043mm     1002x867x1043mm

     Net Weight               175Kg               175Kg                 208Kg               350Kg            380Kg



N8

--- KATALOG SAYFA 10 ---
Note：
◼   L represents the measurement length, in millimeters, the mechanical accuracy of the Z axis, and the
    focusing accuracy have a great relationship with the surface of the workpiece.
◼     ** Magnification is approximate and depends on monitor size and resolution.
◼     It can be attached additional mirrors 0.5X or 2X according to their needs to achieve image magnification:
      13X~86X or 52X~344X.

 Optional Accessories

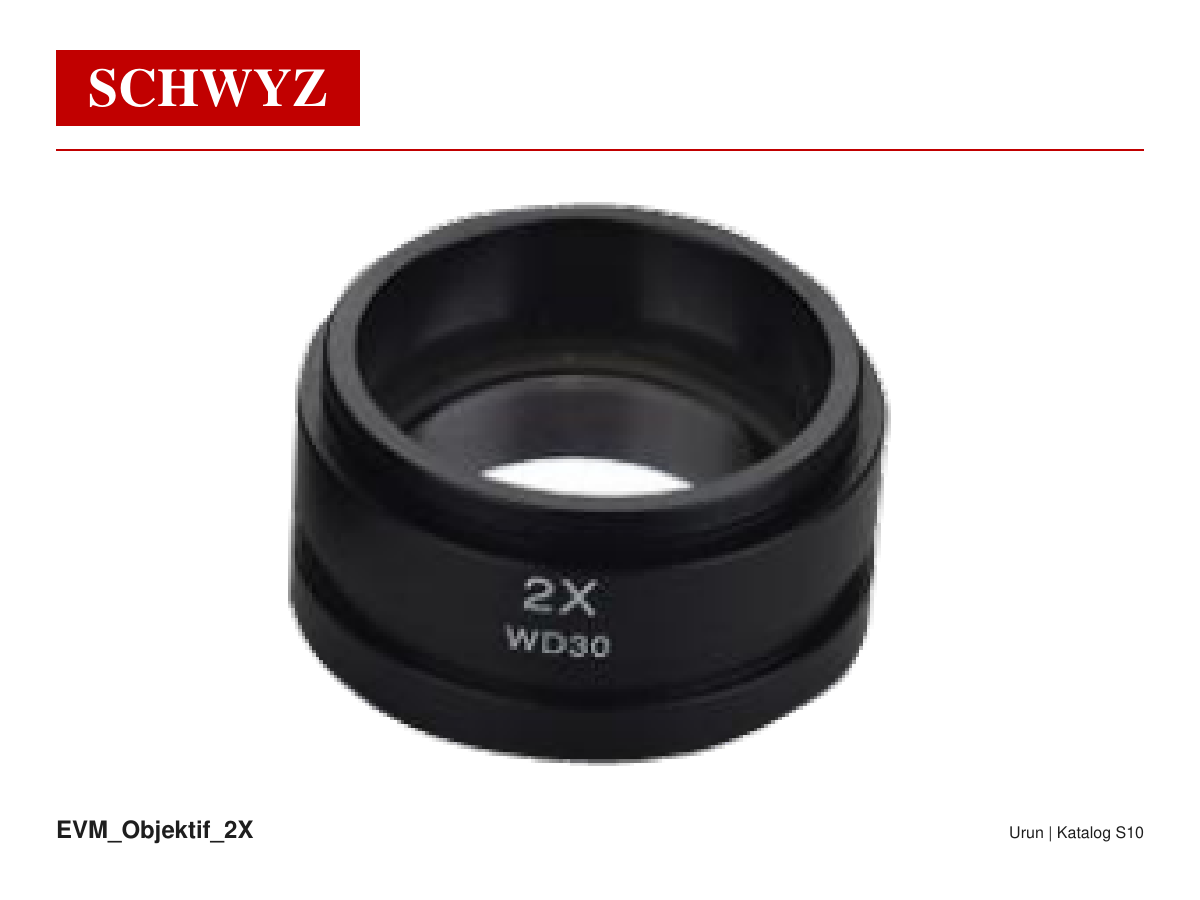

                                                             Additional Objective 0.5X/2X

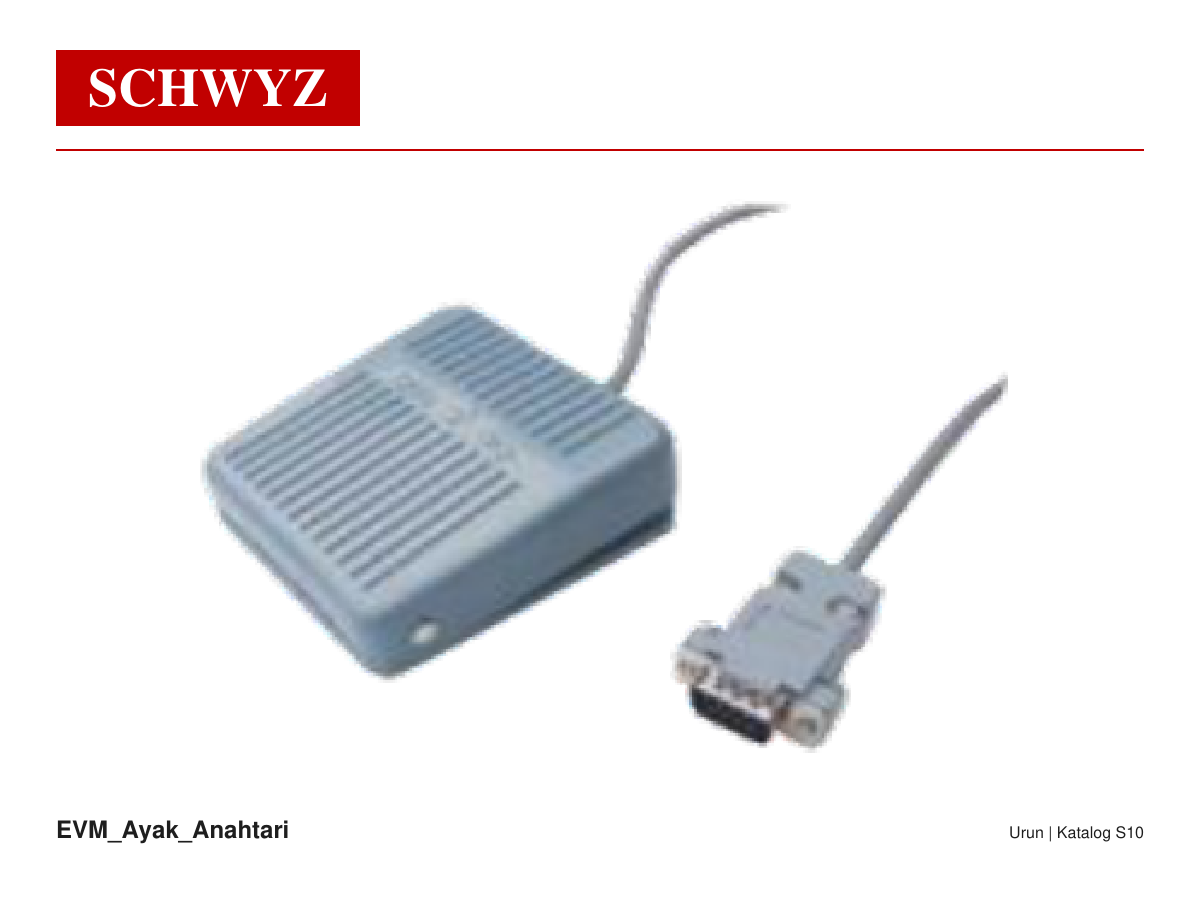

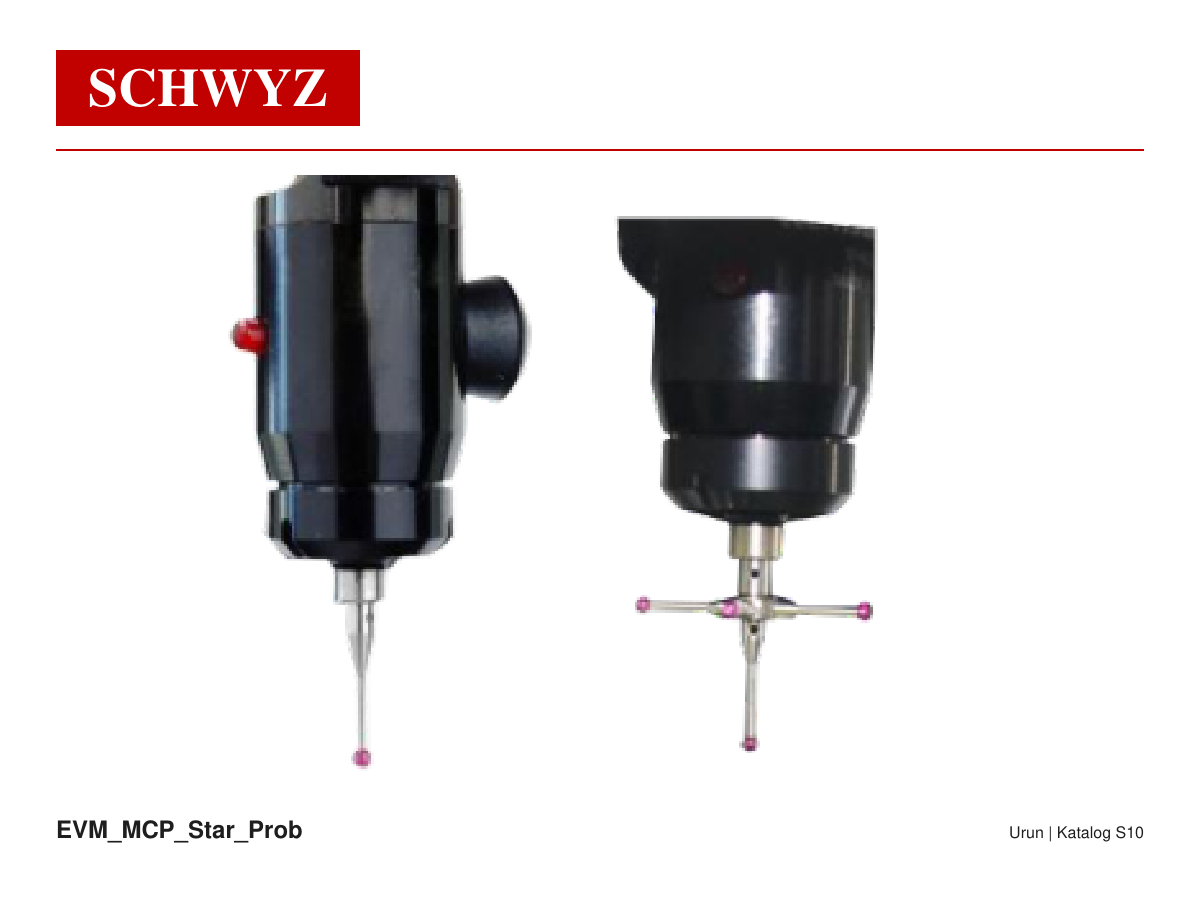

           MCP/Star Touch Probes                                                                                                Foot Switch


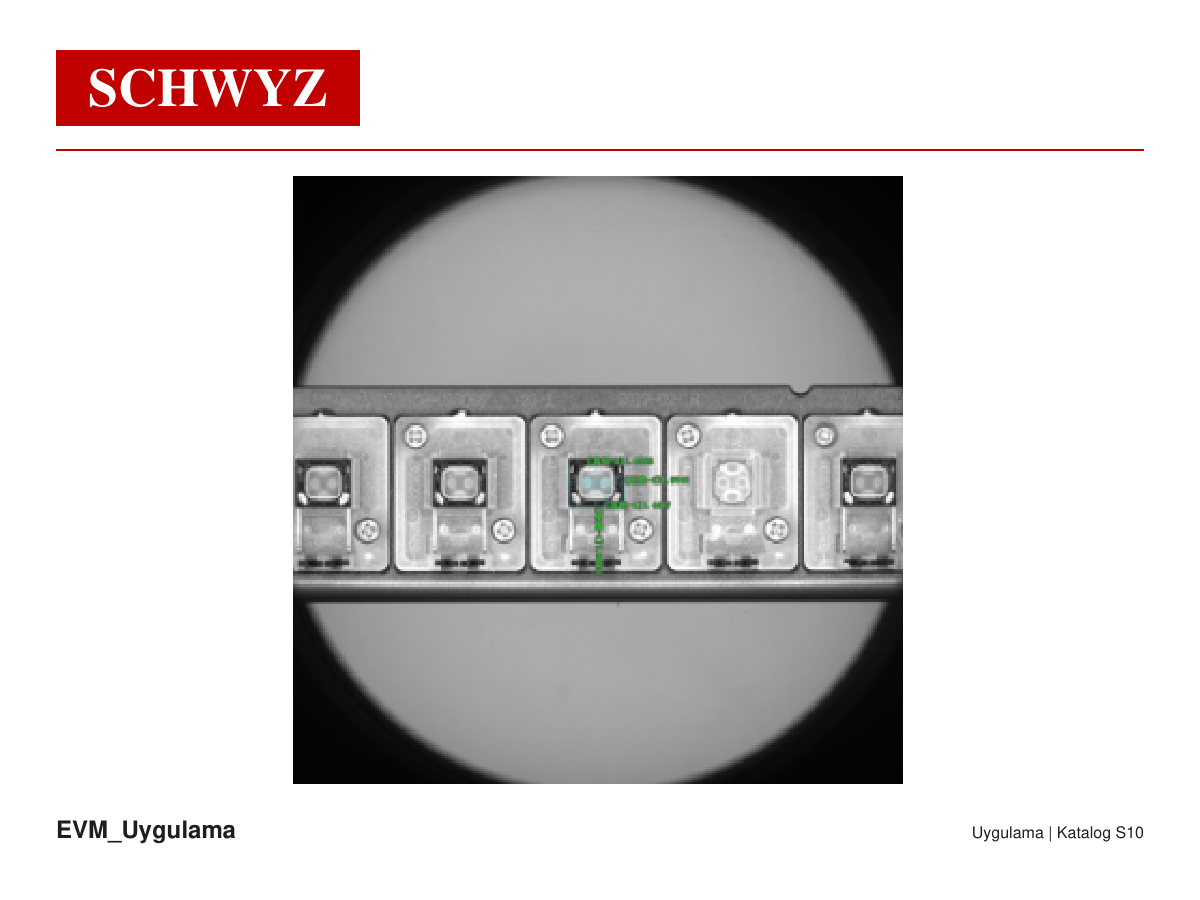

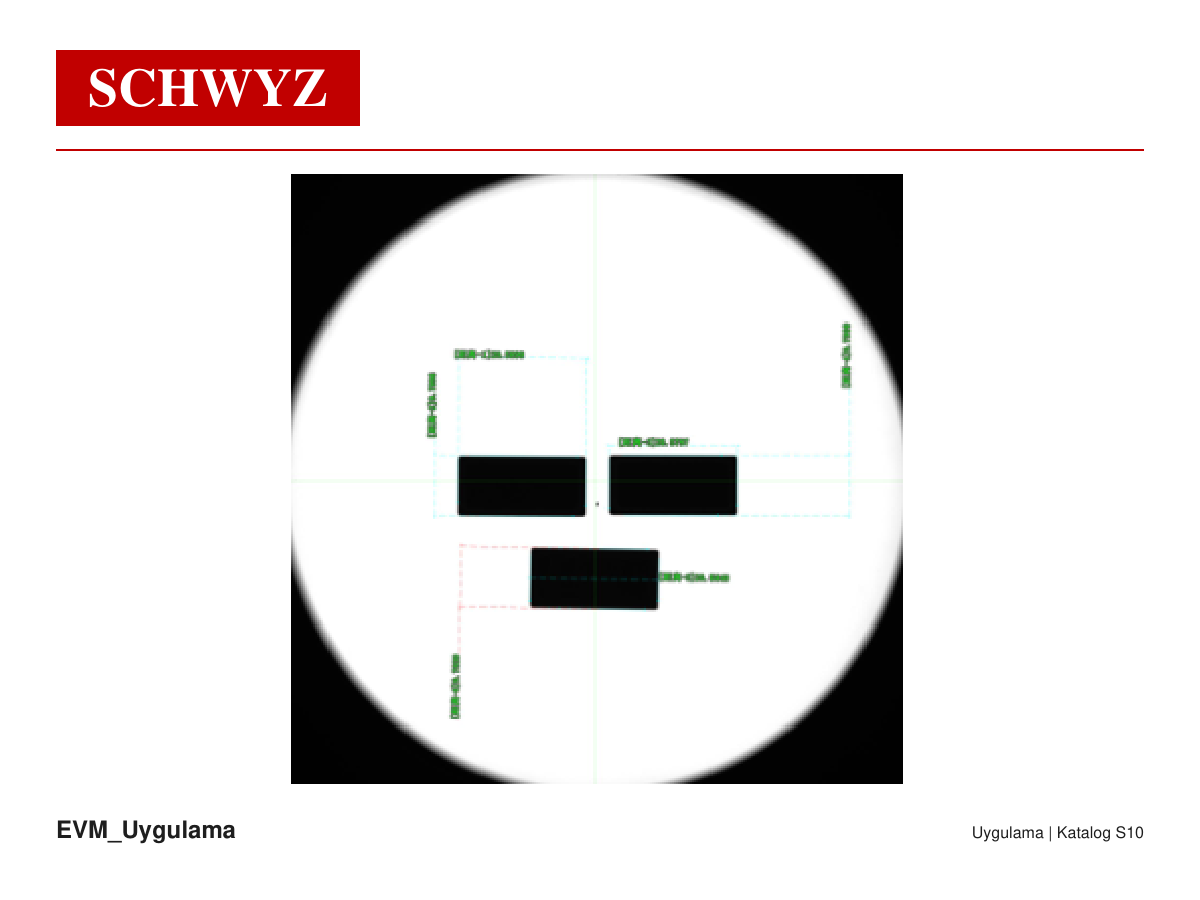

 APPLICATION
       Plastic and Rubber                                                                Die Cutting
Including electronics, automobile industry, aerospace, medical products, daily    Including watch strap, screen protective film, touch screen, display
chemicals, instrumentation, wire and cable, construction equipment and other      screen, circuit board, backlight components, dust filter, battery interface,
rubber products manufacturing and other rubber products                           nameplate and other soft board components, etc.




      Stamping                                                                         3C (Computer, Communications, Consumer Electronics)
                                                                                  Including glass covers, spare parts, chips, circuit boards, touch screens,
Including electrical components, shrapnel, springs, mobile phone parts, watch
                                                                                  etc. of mobile phones, IPADs and other electronic products, as well as
case accessories, daily necessities, auto parts, etc.
                                                                                  peripheral accessories.




       Mold industry                                                                     Semiconductor
 Including mold products, mold parts, mold inserts, mold bases, mold bases,
                                                                                  Including wafers, front-end, back-end, components, boards, packages, etc.
 mold cores, etc.




       Hardware Precision Processing Industry                                            IT Industry
Including hardware parts, die-casting, screws, springs, profiles, gears and       Including connectors, terminals, chips, switches, circuit hardware, integrated
other mechanical processing, powder metallurgy injection molding.                 circuits, wires and cables, electronic components, etc.



                                                                                                                                                                   N9
