METPOL-400

--- KATALOG SAYFA 13 ---
Grinding Polishing Machine METPOL PM-1
      It is suitable for pre grinding, grinding and polishing metallographic
      specimens. The machine is equipped with cooling system that can cool
      down the specimen during pre-grinding so as to prevent overheating and
      damage the metallographic structure. Featuring easy operation and
      reliable performance, it is an indispensable device for the factories,
      research institutions and college labs to prepare metallographic specimen
        Wheel diameter                    Φ203mm
        Constant speed                    450 r/min (left)
        Emergency stop                    YES
        Rotational direction              anticlockwise
        Input voltage                     AC220V 50Hz
        Wheel quantity                    1PC
        Input power                       370W
        Dimension                         595mm x785mm x320mm
        Net weight                        42kg

         Grinding Polishing Machine METPOL PM-2
      It is suitable for pre grinding, grinding and polishing metallographic
      specimens. The machine is equipped with cooling system that can cool
      down the specimen during pre-grinding so as to prevent overheating and
      damage the metallographic structure. Featuring easy operation and
      reliable performance, it is an indispensable device for the factories,
      research institutions and college labs to prepare metallographic specimen
      Wheel diameter                  Φ203mm
      Constant speed                  450 r/min (left)、600 r/min (right)
      Emergency stop                  YES
      Rotational direction            anticlockwise
      Input voltage                   AC220V 50Hz
      Wheel quantity                  2PC
      Input power                     370W
      Dimension                       755mm x780mm x310mm
      Net weight                      56kg

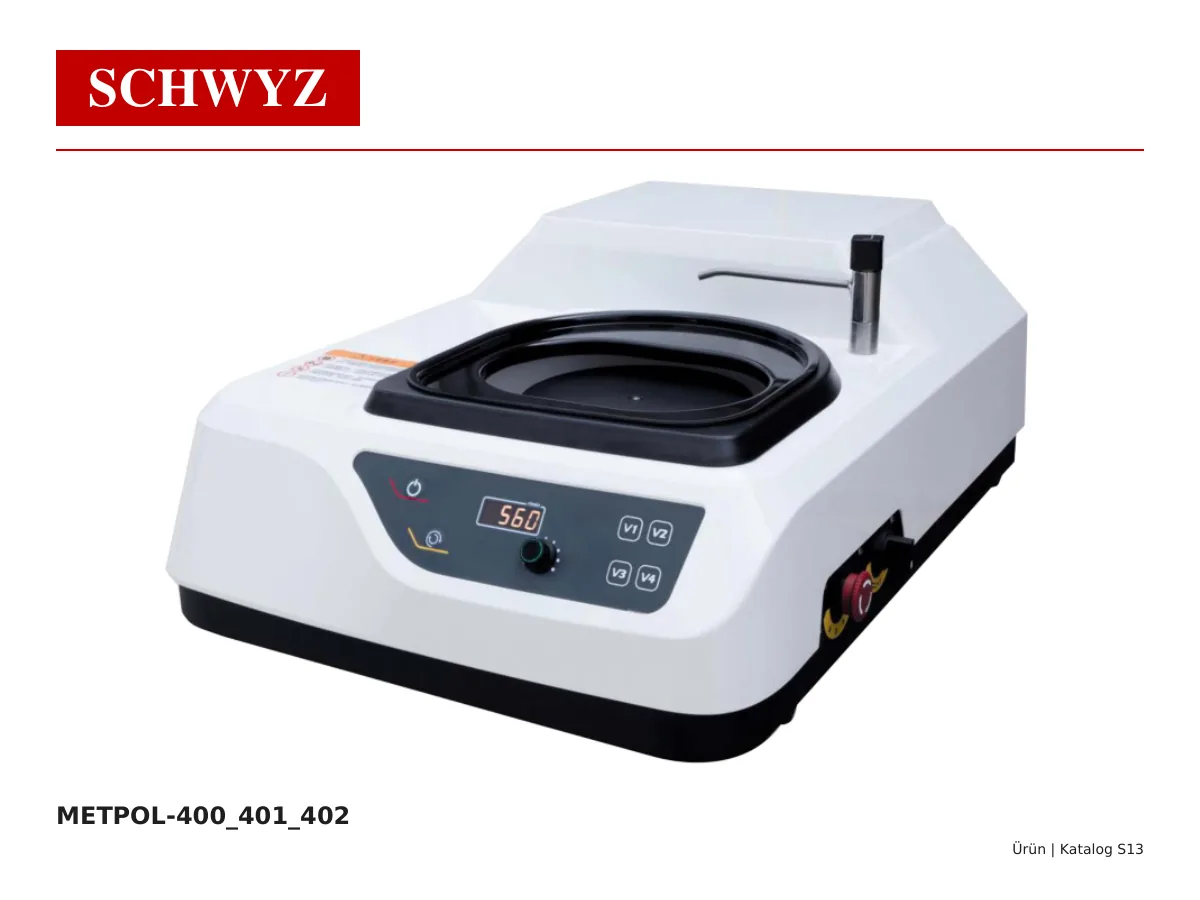

         Grinding Polishing Machine METPOL 400/401/402
      It is suitable for pre grinding, grinding and polishing metallographic specimens.
      Since the machine is speed-adjusted by microprocessor, it can run at a revolution
      of 0 to 600rpm/1000rpm/1400rpm,which favors the machine with wide
      applications. The machine is equipped with cooling system that can cool down the
      specimen during pre grinding so as to prevent overheating and damage the
      metallographic structure. Featuring easy operation and reliable performance, it is an
      indispensable device for the factories, research institutions and college labs to
      prepare metallographic specimen.

            Model No.           METPOL 400            METPOL 401             METPOL 402
       Wheel diameter                 Φ203mm         Φ250mm     Φ300mm
       Rotational speed           0-1400r/min      0-1000r/min 0-600r/min
       Constant speed                 150r/min 、300r/min、      150r/min 、300r/min、
                                      600r/min、1000 r/min       450r/min、 600r/min
       Emergency stop                                     YES
       Rotational direction                     Clockwise or anticlockwise
       Input voltage                                    AC220V 50Hz
       Wheel quantity                                     1PC
        Input power                                     0.75KW
        Dimension                                   594mm x795mm x310mm
         Net weight                                       40kg


J12
