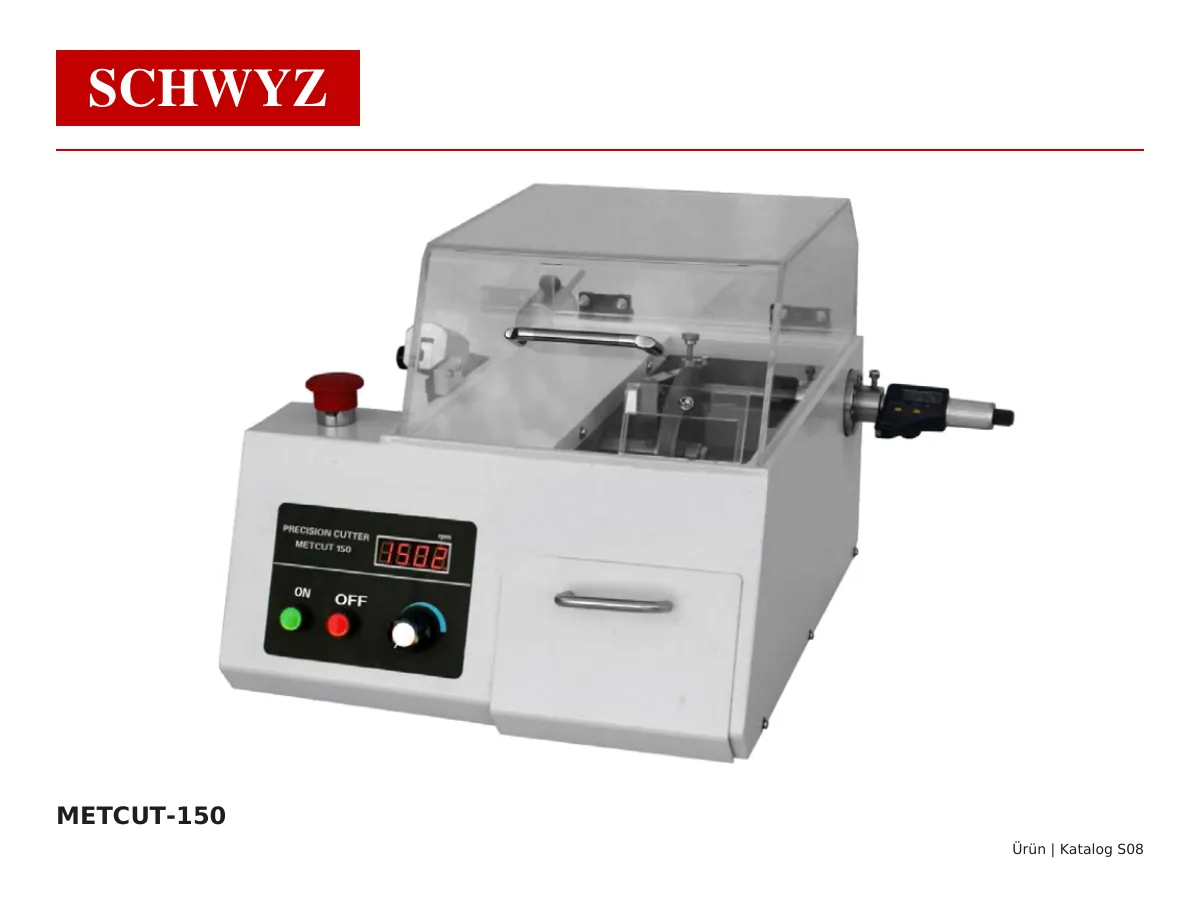

PRECISION CUTTER METCUT 150
PRECISION CUTTER METCUT 150 with touch controls. Fits 3-inch (75 mm) up to 7-inch (175 mm) diameter blades.
Features: Variable speed from 300-1500 rpm cutting with digital speed readout, precision micrometer,
counterbalanced sliding load system, automatic cut-off switch, with coolant system (built-in coolant tank for 5-7
inch blades, external coolant tank for 75-100mm blades), magnetic safety switch for the hood, and emergency stop
button. MetCut 150 has a built in transformer so it can be operated at either 110V or 220V by the flip of a switch.

TECHNICAL SPECIFICATION
 Model No.                METCUT 150
 Cutting capacity         Max diameter 50 mm (2")
 Cut-off blade size       Min. diameter 75-100 mm (3"-4")
                          Max. diameter 125-175 mm (5-7")
 Arbor size               12.50mm
 Variable Speed (rpm)     300–1500 rpm continuously
                          adjustable with LED speed display
 Cutting Load             0-1000 gram load
 Micrometer feed distance 0-25 mm (0 to 1-inch)
 Micrometer accuracy      2 microns
 Motor power              85 W
 Electrical Specification 110V/220V (50/60 Hz) (single phase)
 Dimensions W x H x D     410x 410 x 330mm
 Weight                   40KG
STANDARD DELIVERY
■   Included with the saw
■   Double parallel vise
■   Specimen adhering vise
■   Specimen vise for irregular shaped specimens
■   Treadrop holder for 18-41mm(0.7-1.6 inch) roundspecimens
■   Specimen vise for fastener
■   Dressing unit


    PRECISION CUTTER METCUT 160
PRECISION CUTTER METCUT 160 can be used to cut material, electronic element, electronic element, crystals, hard
alloy, rock sample, core sample, concrete, organic materials, biological materials (teeth, bones), etc. It applies precise
cutting without deformation.
The device features high-power servo motor driving, high locating accuracy, large range of speed, high cutting
power, internal circulation cooling system, preinstall feed speed, menu control and liquid crystal display, etc. The
users are free to define the cutting method. It is an ideal precise cutting machine which can be used in industrial
and mining enterprises, scientific research institutes to prepare high quality samples.

TECHNICAL SPECIFICATION
■   Feeding speed: 0~30mm/min(increment 0.01mm)
■   Speed: 300~5000rpm
■   Max cutting section: φ60mm
■   Maximum stroke: Y axis 200mm
■   Cutting wheel: 200 x 1.0 x 32mm；
■   Cutting power: 1100W
■   Power source: 220V 50HZ
■   Overall Dimension:
■   700mm×720mm×410mm
■   Weight: approx. 130 KG

STANDARD DELIVERY
Water tank
Drain-pipe and Water inlet pipe
 Diamond cutting disc
Cutting lubricant
Instruction Manual
