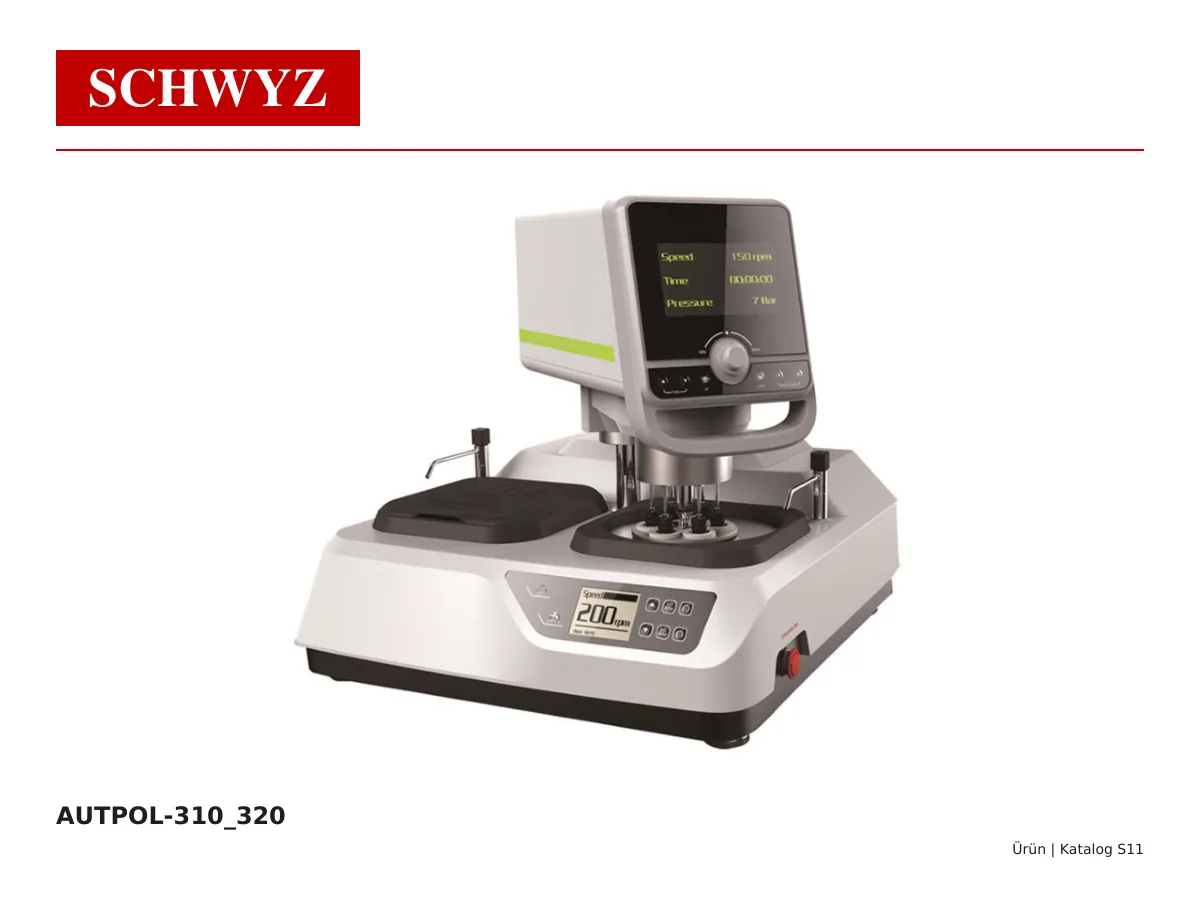

AUTO GRINDING POLISHING MACHINE AUTPOL 300/320
      Automatic polishing machine AUTPOL 300/320 is one kind of double disc
      type machine,which is the new generationg of high precison, the sample
      preparation process of automated manufacturing using the international
      advanced technology according to international standards.This machine
      adopts the advanced microprocessor control system,which makes the
      grinding disc,grinding head speed atepless adjustable,sample preparation
      pressure,time setting.The machine is applied more widely with the function
      of low noise and aluminum base.The machine is applicable to rough
      grinding,fine grinding,coarse polishing and polishing process as well as it is
      an ideal equipment for enterprises,scientific research institutions and
      colleges laboratory.

             Model No.                     AUTPOL 310                       AUTPOL 320
      Wheel diameter                φ250mm(200mm,300mm optional) φ250mm(200mm,300mm optional)
      Wheel quantity                              1                              2
      Rotational rotation                Clockwise or anticlockwise           Clockwise or anticlockwise
      Rotational speed                  50-1000r/min&150/300r/min             50-1000r/min&150/300r/min
      Power head speed                            5-150r/min                              5-150r/min
      Loading range                                  5-60N                                   5-60N
      Sample preparation time                      0-9999S                                  0-9999S
                                    φ30mm(Φ22mm，Φ25mm,Φ40mm，                  φ30mm(Φ22mm，Φ25mm，Φ40mm，
      Sample diameter                                                             Φ45mm，Φ50mm optional)
                                       Φ45mm，Φ50mm optional)
      Preparation sample qty                         6 PCS                                    6 PCS
      Air pressure                                0.6-0.8MPa                              0.6-0.8MPa
      Lighting                                        LED                                     LED
      Input Voltage                             AC220V 50HZ                               AC220V 50HZ
      Input power                                    1.1kw                                   1.1kw
      Dimension                          790mm ×566mm ×677mm                        730mm X710mm X635mm
      Net weight                                  93kg                                        98kg


          SEMI-AUTO GRINDING POLISHING MACHINE AUTPOL 220/240

      Grinding/polishing head

      ■ Power: 200V or 380V 50/60HZ
      ■ Rotate speed: 50 rpm/min
      ■ Sample force: 0-40N
      ■ Sample capacity: 3pcs weight:15kg

          Model No.             SEMI-AUTPOL 220                SEMI-AUTPOL 240
      Working Disc                         1                              2

      Wheel diameter                   φ250mm                          φ250mm
                             (200mm,300mm optional)          (200mm,300mm optional)

      Rotational speed              0-1400r/min                       0-1400r/min
      Constant speed         150 r/min 、300 r/min、           150r/min 、300r/min、
                             600 r/min、 1000 r/min           600r/min、 1000 r/min
      Emergency stop                      YES                          YES
      Rotational direction   Clockwise or anticlockwise      Clockwise or anticlockwise
      Input voltage                AC220V 50Hz                        AC220V 50Hz
      Wheel quantity                   1PC                               2PC
      Input power                      0.75KW                          0.75KW
      Dimension              594mm x795mm x310mm             758mm x785mm x310mm
      Net weight                     50kg                              45kg
