SPECIMEN LEVELING PRESS SLP-100
      When viewing flat polished surfaces with an optical
      microscope, it is desirable that the image stays in focus as the
      specimen is traversed on the microscope stage.
      When viewing flat polished surfaces with an optical
      microscope, it is desirable that the image stays in focus as the
      specimen is traversed on the microscope stage. To achieve
      this, the polished surface must be made parallel to the glass
      slide. The specimen levelling press is used to fix standard
      metallographic mounts or irregular shaped polished samples
      onto glass slides using Plasticine or mounting wax.

      TECHNICAL SPECIFICATION

      Metal body
      Up pressing diameter Ø50mm
      Lower table diameter Ø90mm
      Working distance 45mm
      Accuracy ≤0.5mm
      Weight 1kg
      Dimension W/D/H: 100x120x215mm

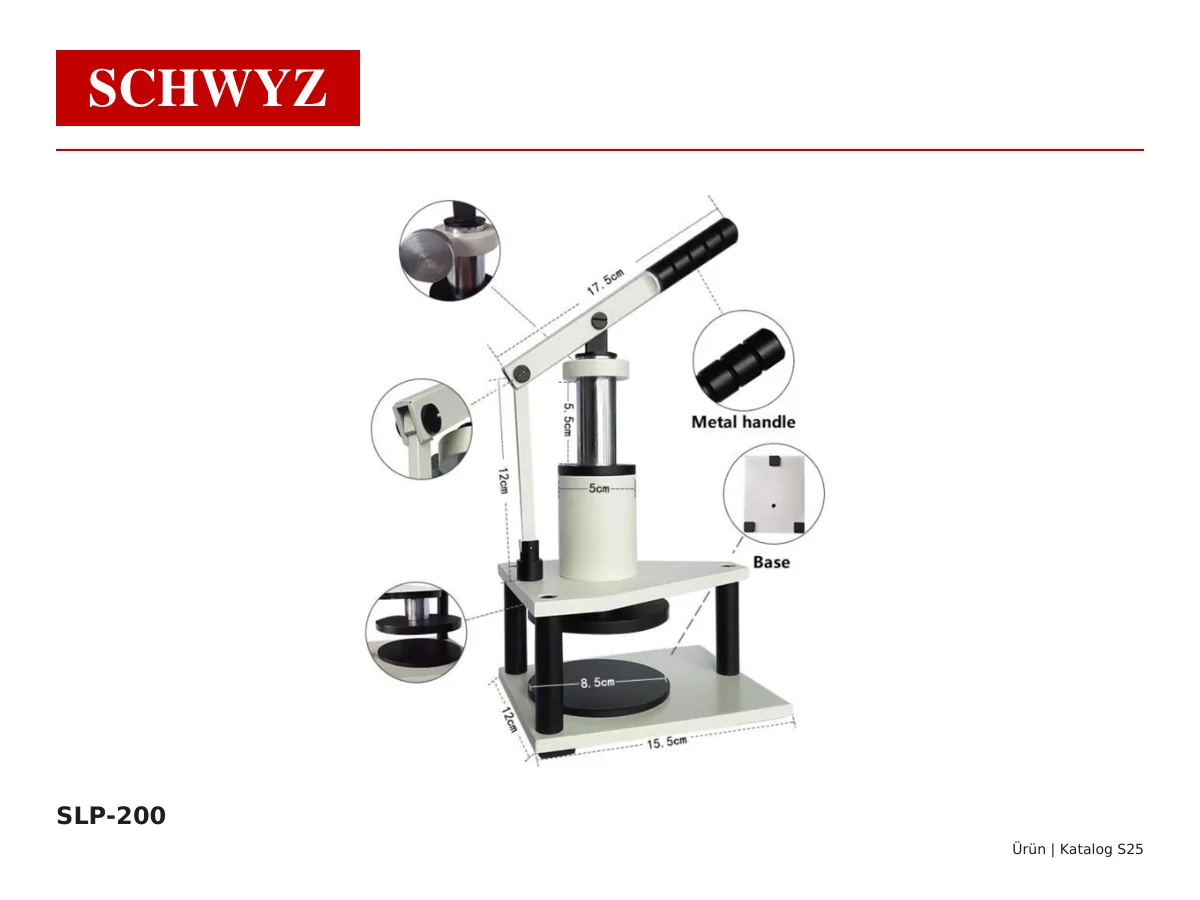

         SPECIMEN LEVELING PRESS SLP-200
      TECHNICAL SPECIFICATION
      Metal body
      Up pressing diameter Ø85mm
      Lower table diameter Ø85mm
      Accuracy ≤0.5mm
      Weight 3kg
      Dimension W/D/H: 120x153x310mm
